This all-round boat, with its impressive capabilities, is designed to cater to a wide array of activities, from fishing and water-skiing to diving, bathing, or simply enjoying a leisurely day on the water

The Pilot4offers maximum versatility as an all-round boat with an impressive performance.Her remouvable cuddy is perfect if you enjoy a lot of different activities,fishing, water-skiing, diving, bathing or just pottering around.

At slowdisplacement speeds the Pilot4 tracks well and is very maneuverable, so whetheryou are trolling for fish or exploring rivers you can be assured a relaxingtime. But apply the throttle and the Pilot4 eases onto the plane giving you theperformance you would expect from a conventional sports boat.

When onboard you have the space andfeeling of a much larger boat with plenty of storage and seating. The highinternal freeboard is perfect for smaller children, with the cuddy providing asafe haven even on those colder days.

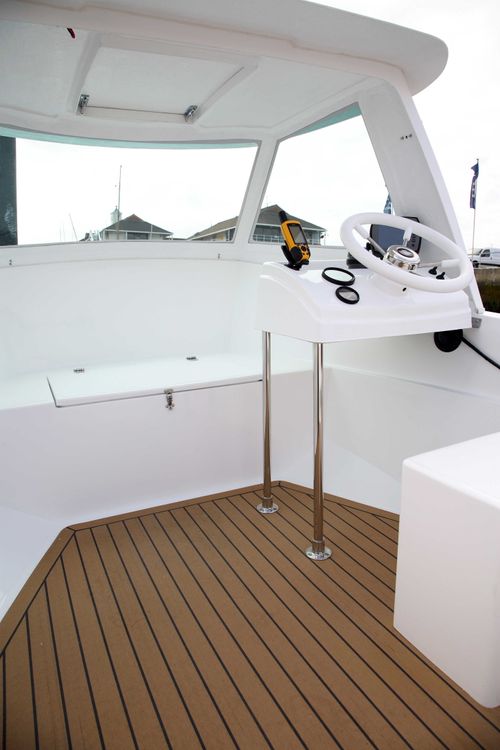

The layout has been kept simple andpractical, with large lockers forward and aft providing ample storage andseating. The steering console and helm seat have been positioned amidships tostarboard keeping the majority of the deck open and versatile. An optional portside seat is also available. The removable cuddy is mounted forward with arooftop hatch giving safe access to the foredeck when mooring and anchoring.This arrangement gives exceptional levels of visibility through the cuddygenerally not found on many other similar boats.

The hull is of a medium ‘V’ typewith a deep forefoot creating fine sections forward that slice through choppyseas. Spray and chine rails improve performance and deflect spray down and awayfrom the boat keeping her dry even if conditions deteriorate. The hull has adeadrise of 15 degs. aft and plenty of beam to support the larger and heavier4-stroke outboards.

The Pilot4 is manufactured from GRP,with the hull reinforced by an internal girder system linking the hull and deckmouldings, producing a very strong and rigid structure, all GRP materials beingLloyds approved or equivalent. The keel is double laid and the transom isreinforced with marine plywood and supported by the girder system to take theengine loadings. The full deck moulding incorporates a non-slip finish withadditional structure in way of each deck fitting.

Ordering Pilot 4:

To place an order for the Pilot 4 and Pilot 6 motor boats, or Nordic Explorer coastal rowing boat, please contact Armplast's partner Westport Marine.

Pilot 4

Technical Specifications:

Beam of the hull (m):


Category CE:


Crew Limit:


Draft max (m):


Fuel tank capacity (dm3):

Length of the hull (m):


Mass without engine (kg):



Max engine power (kW/HP):

50 hp long shaft

Recommended power:

Maximum power:

Standarn equipment:

Bow eye fitting , Anchor roller, Foredeck cleat & fairleads, Cuddy - removable, Access hatch to foredeck, Lightly tinted cuddy windows, Port & starboard hardwood capping rail inserts, Port & starboard aft mooring cleats, Integral aft seating with lockable storage, Clear non-slip internal moulded deck pattern, Integral forward seating with lockable storage, Starboard side steering and engine control console, Steering unit & linkage, Port & Starboard Helm seats, Stern boarding ladder .

Optional accessories:

Teak effect main deck, Seat cushions, blue with white piping, Mooring canopy ,Pedestal Seating .
